What is an air disc brake caliper cover?
An air disc brake caliper cover is a protective part in the pneumatic brake system that shields the caliper body and its internal mechanism from dust, water, mud and chemical agents. Because the caliper is constantly exposed to outside elements on heavy commercial vehicles, this cover separates the moving parts and sealing surfaces from the outside world. In the workshop, the part is also known as a caliper dust cover. The cover's job is not to produce braking force, but to keep the force generated stable and free from loss.
How does an air disc brake caliper cover work and what parts does it include?
The cover is not a brake element on its own; it sits on the outer surface of the caliper and protects the other parts of the system. Brake pads, boots or pushrods are separate caliper parts and are outside the scope of this page. The part groups on this page are as follows.
- Cover: the main protective element fitted to the caliper body.
- Bolt: secures the cover and fixing parts to the caliper body.
- Gasket: provides sealing at the joint between the cover and the body.
- Seal: prevents dirt and moisture from entering at moving sections.
- Plate: a backing part that supports the cover on its seating surface.

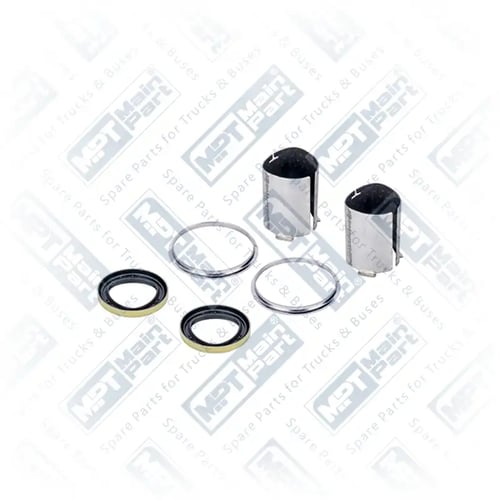

- Repair kit: a revision set combining gaskets, seals and fixing elements.
Air disc brake caliper cover types
- Complete cover: preferred when the cover and fixing elements are to be replaced together.
- Gasket and seal set: sufficient when the cover is sound and only the sealing elements are worn.
- Repair kit: used when several sealing points need work at the same time.
- Bolt and plate group: replaced separately when the connection points have loosened or worn.
How to choose the right air disc brake caliper cover?
Selection should be made by checking the markings on the removed cover and the caliper type. The cover's seating surface, the position of the bolt holes and the parts to be used together should be checked. Vehicle brands and model names alone are not enough; the caliper type and the cover itself should be the basis.
| Criterion | What to check | Why it matters |
|---|---|---|
| Caliper type | Outer shape of the caliper and cover seating position | A wrong cover type will not seat and will not protect |
| Bolt hole layout | Position of bolt holes and hole spacing | A misaligned cover creates tension and breaks the seal |
| Material strength | Resistance to vibration and temperature changes | A cracked cover opens the internal parts to outside elements |
| Gasket and seal condition | Seating surfaces and old gasket marks | Even a new cover can leak on an old sealing surface |
| Removed part reference | Markings on the cover and caliper records | Covers that look alike can fit different calipers |
Installation and maintenance points
- Surface cleaning: the caliper body and cover seating surface must be cleaned of dirt, rust and old gasket residue before fitting.
- Bolt tightening order: bolts should be tightened diagonally from corner to corner with even pressure; tightening from one point will distort the cover.
- Gasket and seal placement: the cover should not be fitted before the seals are properly seated.
- Leak check: after fitting, pressurize the system and listen for air leak sounds around the connection.
- Periodic inspection: regular checks of the cover for cracks, deformation and dirt build-up help catch early failure.
Common faults and solutions
- Dust and water entering the caliper: a cracked cover or worn seal is a likely cause; renew the cover and seal set.
- Air leak sound at the connection: loosened bolts or a damaged gasket are likely causes; retighten the bolts and replace the gasket.
- Delayed braking and imbalance: a pressure drop from an air leak at the caliper is a likely cause; check connections and replace the leaking cover or gasket.
- Cover deformation: forcing a wrong type of cover into place is a likely cause; fit the correct type and seat it properly.
Frequently Asked Questions
Does the air disc brake caliper cover leak?
If the cover itself is cracked or its seating surface is damaged, air may leak around the connection. The real leak is most often caused by a gasket or seal. When tracing a leak, check the sealing elements first.
Should I buy a complete cover or a gasket and seal set?
If the cover is sound and only the sealing elements are worn, a gasket and seal set may be enough. If the cover shows cracks, deformation or a damaged seating surface, a complete cover is the safer solution. The decision should be based on the physical condition of the removed part.
Why should the caliper cover be checked regularly?
The cover is constantly exposed to dust, water and mud. A small crack can reach the internal mechanism over time and affect braking performance. For this reason, the cover should be checked by sight and by hand during maintenance.
Can loose bolts damage the cover?
Yes, loose bolts can allow the cover to move with vibration and wear its seating surface. This breaks the seal and increases the risk of air leaks. Bolts should be tightened in the correct sequence and to the proper torque.
Can a repair kit be used instead of replacing the cover?
A repair kit is used to renew the sealing elements when the cover body is sound. If the cover has cracks or deformation, a repair kit alone is not a solution. This distinction should be made carefully before fitting.
