Fan

Products: 589

Cooling Fan covers the blade, hub and clutch assemblies that increase airflow through the radiator and lower engine temperature. Read the guide

What is a Cooling Fan?

A cooling fan is the rotating blade assembly that keeps engine temperature within safe limits by increasing airflow through the radiator. It is driven by a belt, a viscous clutch or an electric motor, and engages when the temperature rises or when airflow is insufficient. In the field this part is also called a 'fan propeller' or 'engine fan'. The parts that wear most in this group are the blade, hub, bearing and belt drive.

How does the cooling fan work and what parts does it cover?

The fan creates airflow around the radiator, and the group consists of the following components:

  • Blade: the bladed part that produces the airflow directly; blade geometry and strength determine efficiency.

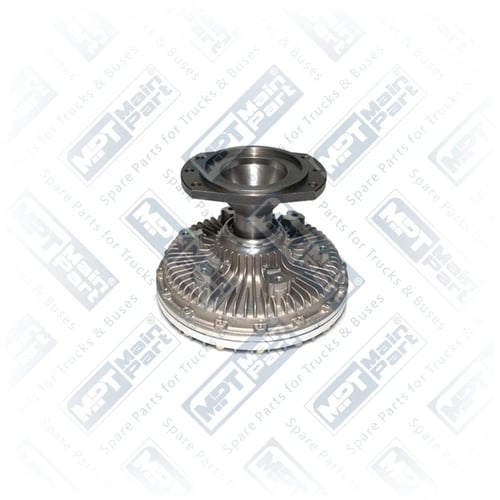

  • Viscous fan and hub: the main body elements to which the blades are attached.

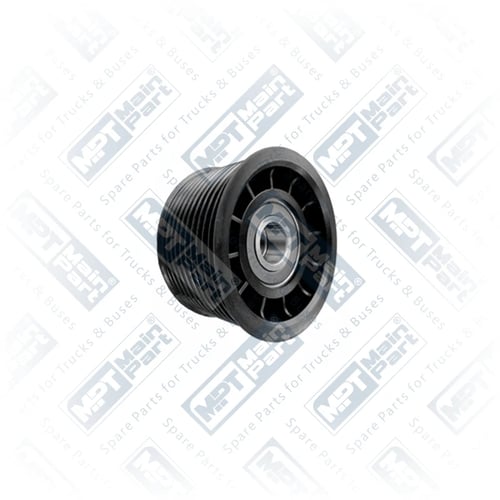

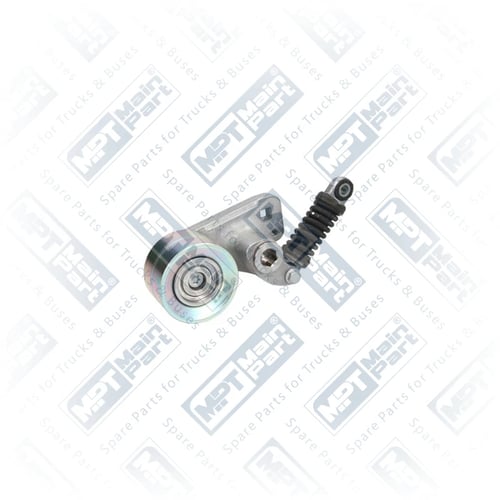

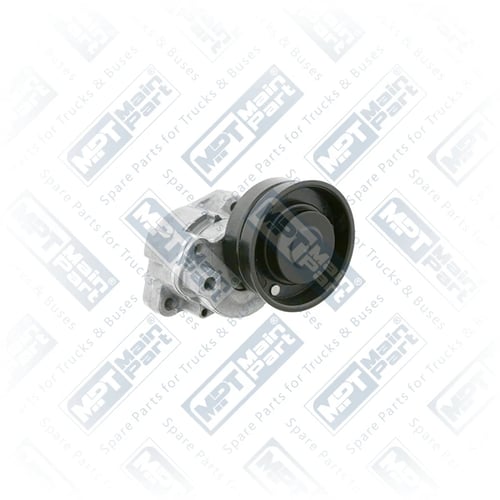

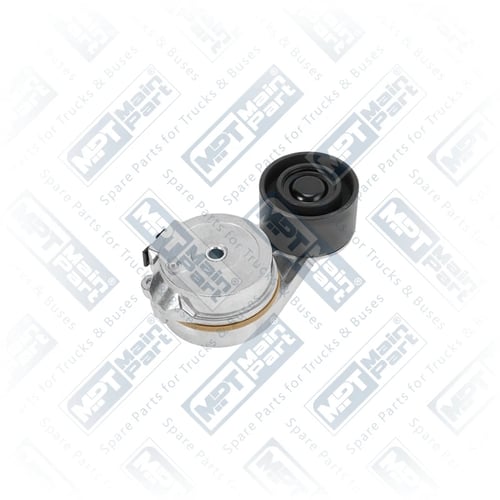

  • Belt tensioner: keeps the fan belt at the correct tension.

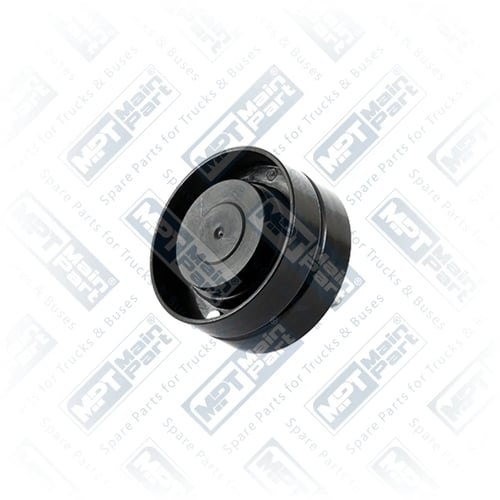

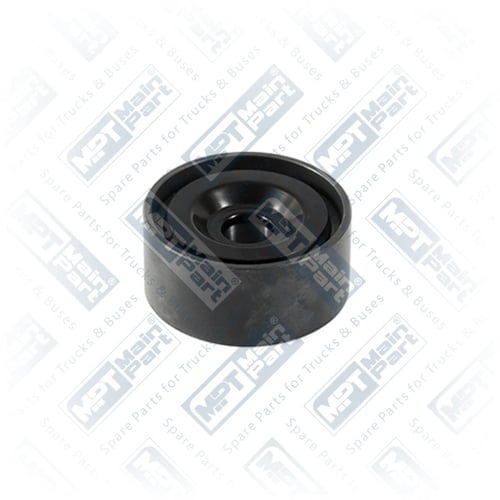

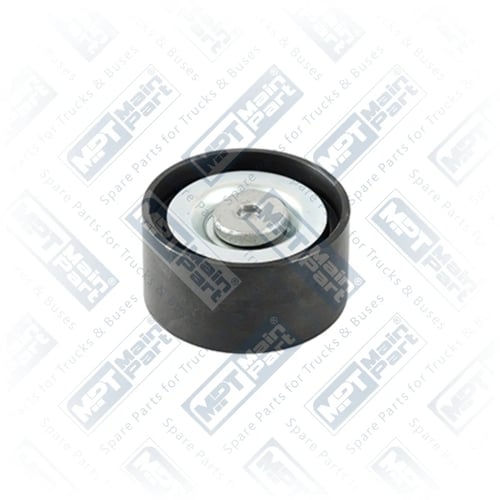

  • Tensioner pulley: the idler that keeps the belt on the correct path around the pulley.

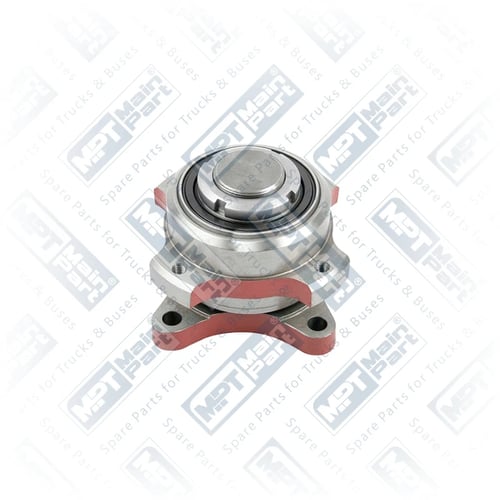

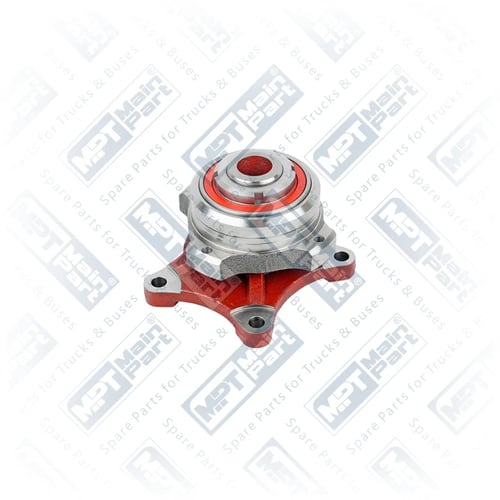

  • Bracket: the connecting part that fixes the fan group and tensioner elements to the engine block.
  • Repair kit: a renewal set containing the seals, bearings and gaskets that wear.

Cooling fan types

  • Complete fan assembly: preferred when the blade, hub and bracket are replaced together.
  • Single part replacement: only the blade or hub is replaced, with the rest of the group kept when it is sound.
  • Fixed blade and clutch type: chosen depending on whether the fan runs continuously or according to temperature.
  • Electric fan: an electric motor driven type, preferred when a belt layout is not needed.
  • Repair kit: used to replace only the worn internal components when the blades and hub are sound.

How to choose the right cooling fan

When choosing, first examine the blade direction, hub shape and drive type of the removed fan, and note the belt and bracket connection points. Even within the same model series, Mercedes-Benz, MAN, Scania, Volvo and DAF can use different fan layouts, so choosing by model name alone is a mistake.

CriteriaWhat to checkWhy it matters
Drive typeBelt, viscous clutch or electricA wrong drive disrupts airflow
Blade designCracks, deformation and wearImbalance creates vibration and bearing load
Hub connectionHub bore and bolt seatA loose hub makes the fan wobble
Tensioner layoutBelt tensioner and tensioner pulley conditionSlipping and overload are prevented
Bracket positionConnection point on the engine blockWrong placement causes rubbing

Installation and maintenance tips

  • Blade direction: blades fitted in the wrong direction reverse the airflow; check the direction mark.
  • Bolt tightening: hub bolts must be tightened to the value specified by the manufacturer, as looseness increases vibration.
  • Belt tension: excessive tension overloads the tensioner pulley, while looseness makes the belt slip.
  • Bracket check: a cracked or loose bracket can cause the fan to rub against the engine.
  • Cleaning: mud and oil build-up on the blades upsets balance; carry out regular cleaning.

Common faults and solutions

  • Fan runs continuously: the clutch or thermostatic control may be faulty; check the clutch and repair with a repair kit if needed.
  • Fan vibrates: blade deformation or hub looseness; inspect the blades and bolts.
  • Whistling and noise: belt tension or tensioner bearing fatigue; renew the pulley and belt.
  • Blade breakage: fatigue or a foreign object strike; replace the blade.

Frequently Asked Questions

Why is the cooling fan important for engine cooling?

At low speed and idle, not enough air reaches the radiator. The fan provides airflow in these moments to help the coolant cool down, and it plays a decisive role in preventing overheating.

How can belt tension be judged?

Press the middle of the belt to check for excessive stretch or looseness. A whistling sound and a shine on the belt indicate a tension problem.

Why is cleaning the blades important?

Mud and oil build-up disrupts the weight balance of the blade and causes vibration. Blade cracks should also be checked during cleaning.

How should a repair kit and a complete fan be chosen?

If the blade and hub are sound, a repair kit with only the worn internal parts is sufficient. If the blade is cracked or deformed, a complete part is the safer solution.

Why doesn't the fan always run?

On a viscous-clutch fan, the fan disengages from the drive and reconnects according to temperature. This avoids unnecessary load, and the engine receives extra cooling only when it is needed.
